Data export

Overview

DBeaver allows you to export query results or tables. This guide explains the export process using CSV as an example. For details on supported formats, see Data Transfer.

Note: Each format may have specific configuration settings that can be adjusted to meet your needs.

Steps to export data

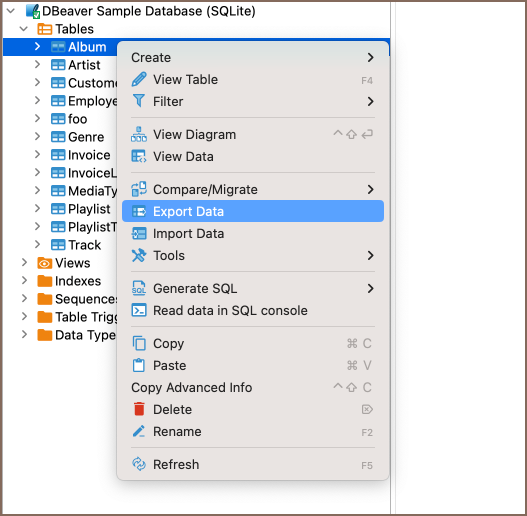

1. Select the table or tables you want to export. In the context menu, choose Export Data.

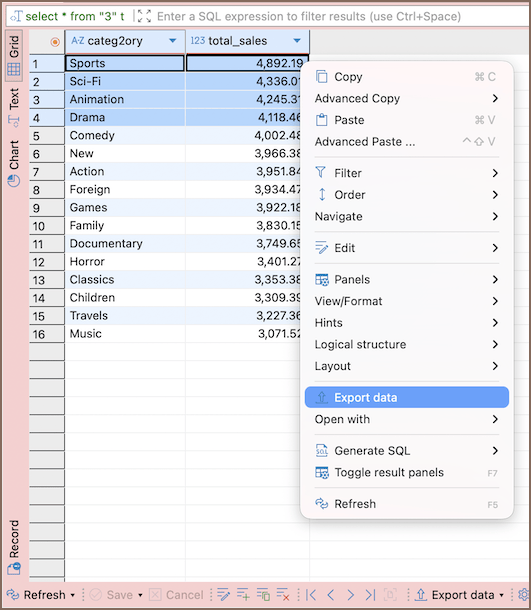

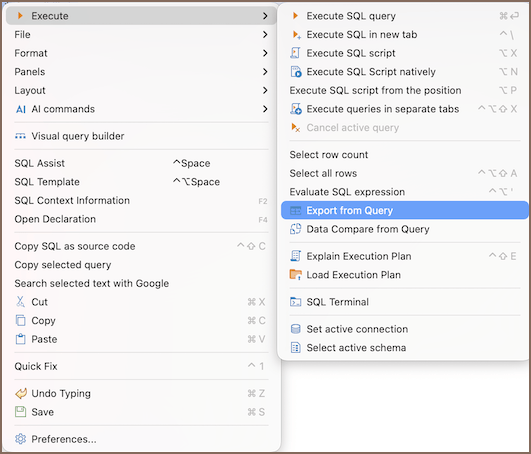

   Note: you can also export data from custom SQL query results. To do that, choose Export data in the results context menu.

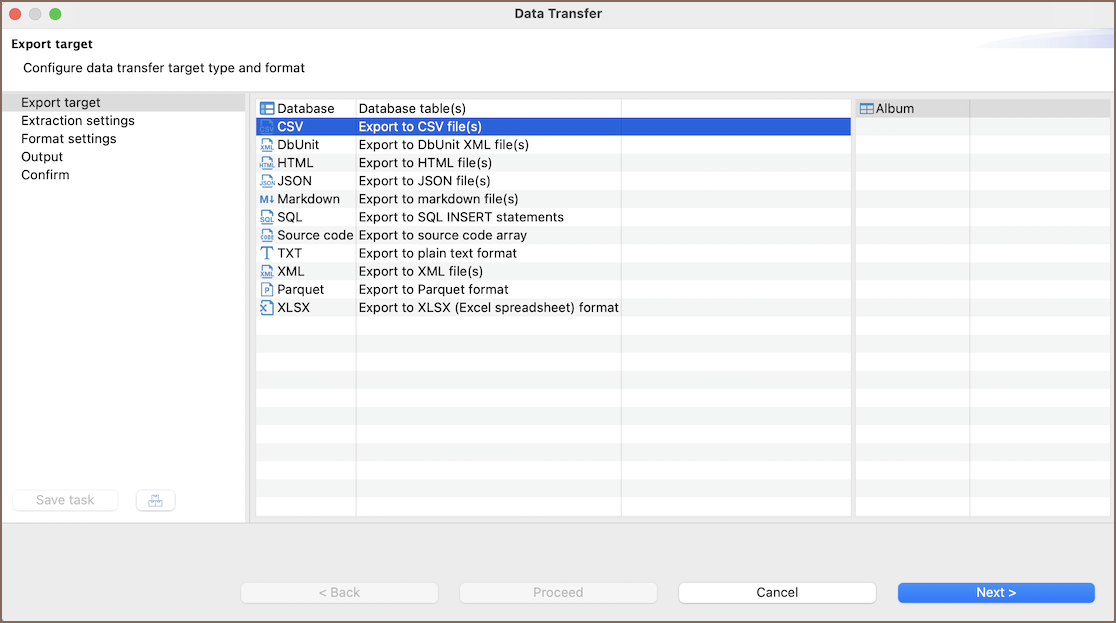

2. In the window that appears, choose CSV and click Next.

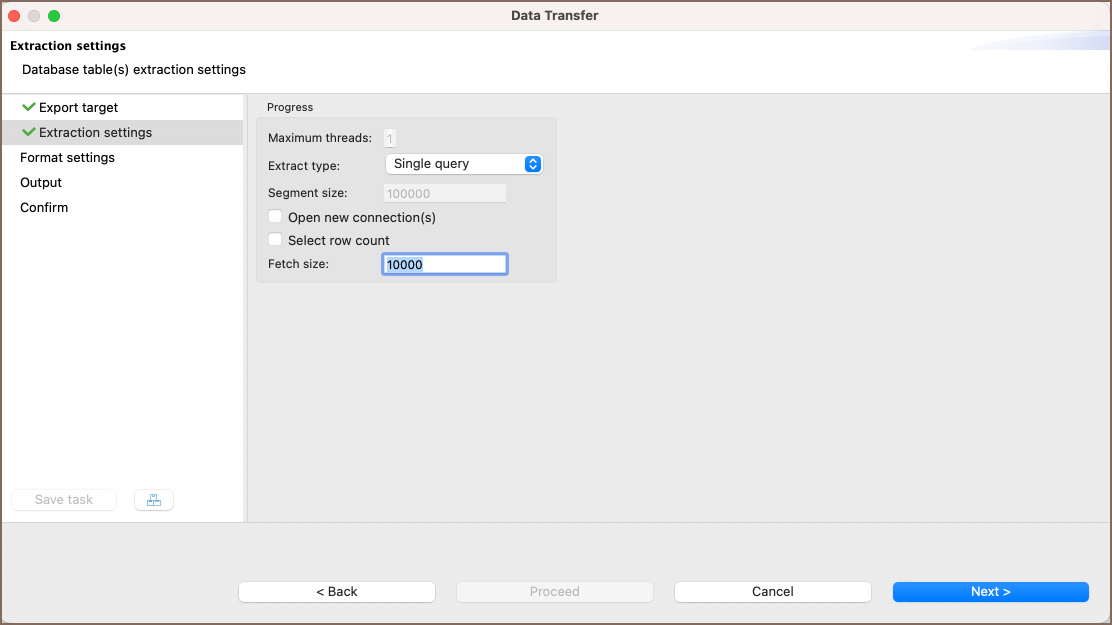

3. Set your data extraction options (how the data will be read from the tables). This may affect the extraction's performance. And set the export format option. They are specific to the data format you chose in step 2:



   Setting name	Description
   Maximum threads	Number of threads used for data extraction.
   Extract type	Defines the method of data extraction (Single query or Multiple queries).
   Segment size	The size of data segments to be extracted at a time (active while Multiple queries are selected as an Extract type).
   Open new connection(s)	Opens a new physical connection for data reading, recommended if you plan to continue working with the database during the export process.
   Select row count	Queries row count before performing export to track progress, but may cause performance issues in some cases.
   Fetch size	Number of rows the driver retrieves in one batch from the database.

   Tip: The Maximum threads option is active when exporting data from multiple tables. It is recommended to set the number of threads to match the number of cores in your computer for optimal performance.

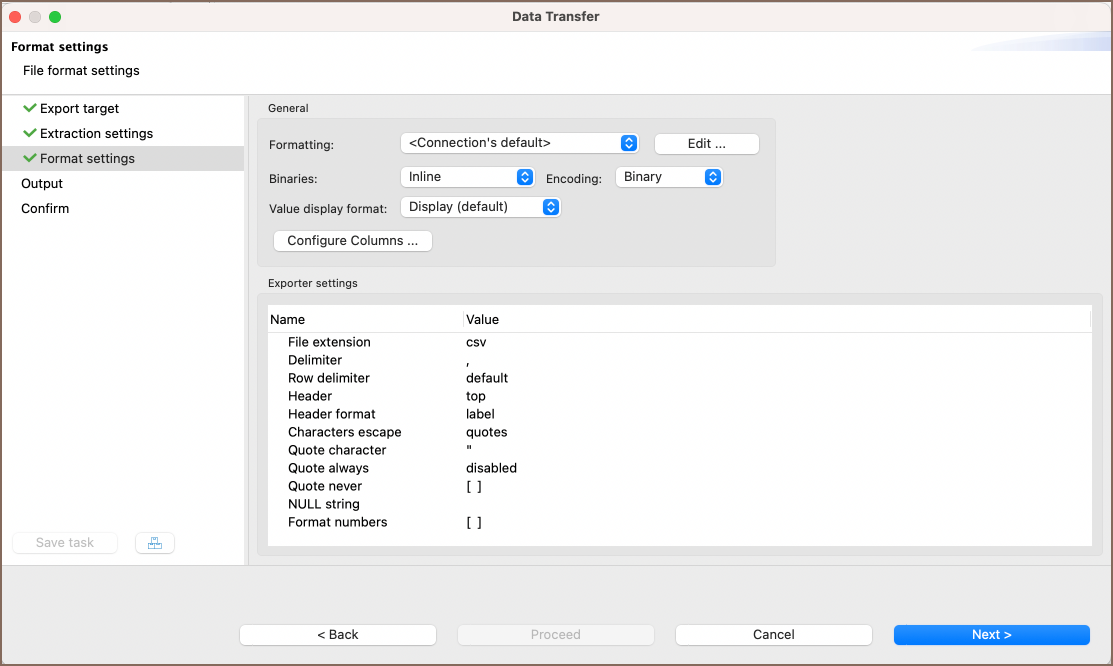

4. Configure the format settings.

   At this stage, you configure the format settings for the output file. These settings determine how the data will be presented and encoded in the exported file. For more details on exporter settings, see Export parameters.



   Setting name	Description
   Formatting	Selects the formatting settings for the exported data. Reed more in the related article
   Binaries	Specifies how binary data is represented in the export.
   Encoding	Sets the character encoding for the exported file.
   Value display format	Chooses the format for displaying values in the export.
   Configure columns	Allows you to set which columns to export. Configure the columns to export by clicking Configure. In the Action column, use the down arrow on a row to toggle between skip or export for that column/table.

   Note: The options within the Exporter settings section will vary and provide specific controls tailored to the format selected for export.

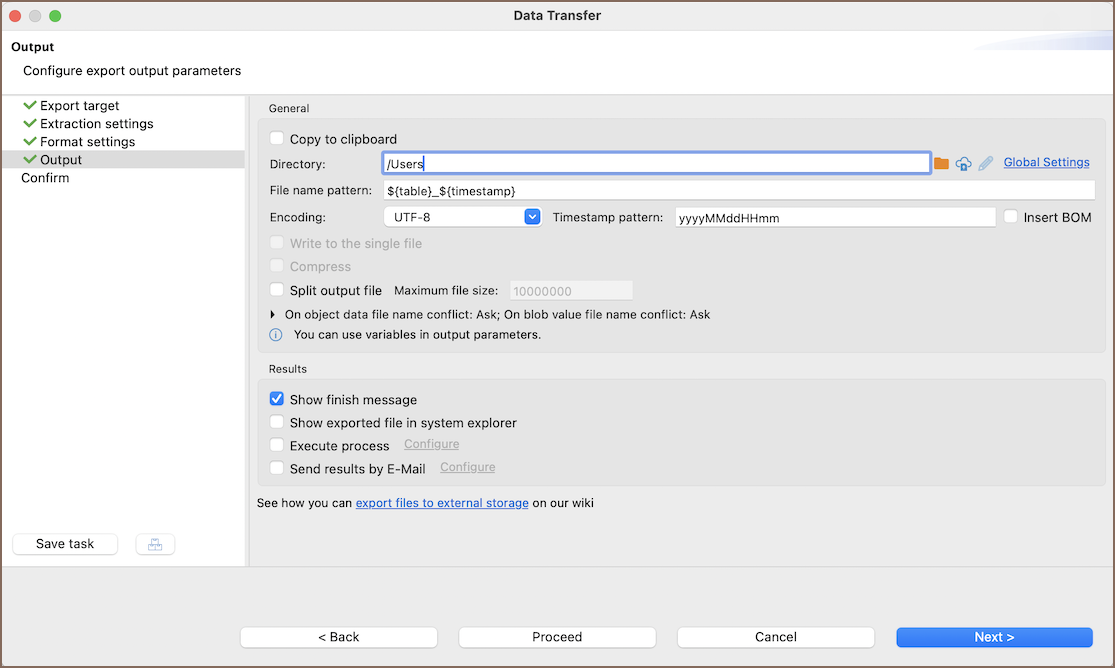

5. Set options for output files or clipboards.

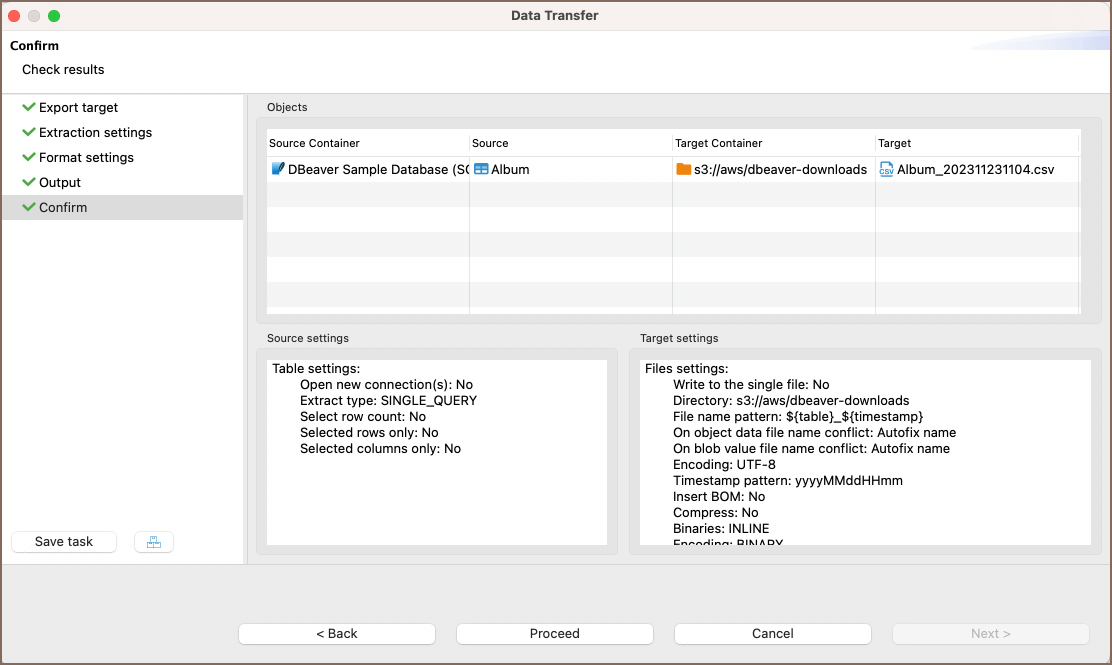

6. Review what you want to format and which format you will export. You can also save all your settings as a task in this step or change the task variables:



7. Press finish. See extraction progress. You can keep working with your database during the export process as the extraction will be performed in the background.



Export parameters

In this section, you will find specific configuration settings for each supported export format. These settings allow you to customize the export process according to the requirements of the data format you choose.

CSV

Setting name	Description	Available options
Characters escape	Bad characters escaping model (surrounded with quotes or escaped with '\' character).	quotes/escape
Delimiter	Column delimiter.	You can use special characters like \t, \n, and \r.
File extension	The default file extension for the exported file.	csv
Format numbers	Format numeric values using locale settings.	true/false
Header	CSV header settings.	none/top/bottom
Header case	You can choose lower or upper case for column names or descriptions in the header.	as is/upper/lower
Header format	Defines the formatting of the header.	label/description/both
NULL string	String which will be used instead of NULL values.
Quote always	Quote all cell values. Cannot be used with "Quote Never".	disabled/all/strings/all but numbers/all but nulls
Quote character	Character which will be used to quote strings (space means no quote).
Quote never	Do not quote cell values. Cannot be used with "Quote Always".	true/false
Row delimiter	Row delimiter. Default is system-specific line feed delimiter.	default/\n/\r/\r\n/\n\r

DBUnit

Setting name	Description	Available options
File extension	The default file extension for the exported file.	xml
Force upper case column names	Convert all column names to upper case.	true/false
Force upper case table name	Convert the table name to upper case.	true/false
Include NULL values in export	Include NULL values in the exported data.	true/false
Replace NULL values with	Specify a string to replace NULL values in the export.

JSON

Setting name	Description	Available options
File extension	The default file extension for the exported file.	json
Format dates in ISO 8601	Convert all date values to ISO 8601 format.	true/false
Print table name	Include the table name in the exported file.	true/false
Export JSON values as	Export values as text or as JSON objects.	string/JSON

Markdown

Setting name	Description	Available Options
Confluence format	Enable Confluence-specific Markdown formatting.	true/false
File extension	The default file extension for the exported file.	md
Format numbers	Format numeric values using locale settings.	true/false
NULL string	String to represent NULL values in the export.
Show header separator	Include a separator line below the header.	true/false

Source code

Setting name	Description	Available options
File extension	The default file extension for the exported file.	php
Format dates in ISO 8601	Convert all date values to ISO 8601 format.	true/false
Language	Specifies the PHP version compatibility for the generated code.	PHP < 5.4, PHP 5.4+
Quote character	Character which will be used to quote strings.	", '
Row delimiter	Row delimiter. Default is system-specific line feed delimiter.	default, \n, \r, \r\n, \n\r

SQL

Setting name	Description	Available options
Data rows per statement	Specifies the number of data rows in a single insert statement.	integer
File extension	The default file extension for the exported file.	sql
Identifier case	Allows selection of lower or upper keyword case for table and column names.	as is/upper/lower
Include generated columns	Specifies whether to include auto-generated columns (e.g., auto-increment) in SQL INSERT statements.	true/false
Insert line before rows	Specifies inserting a line feed before values in multi-row inserts.	true/false
Keyword case	Allows selection of lower or upper keyword case.	upper/lower
Native date/time format	Specifies using native date/time format in INSERT statements.	true/false
Omit schema name	Specifies omitting schema/catalog name in INSERT statements.	true/false
On conflict expression	Provides an expression for the end of the statement. This setting is specific to the database.
Target table name	Allows specification of the target table name to generate an INSERT statement.
Upsert keyword	Allows selection of different upsert keywords.	INSERT/INSERT ALL/UPDATE OR/UPSERT INTO/REPLACE INTO/ON DUPLICATE KEY UPDATE/ON CONFLICT

TXT

Setting name	Description	Available options
Batch size	Specifies the number of records per batch.	integer
File extension	Specifies the file type for output.	txt
In-between delimiter	Adds a custom character between data values.
Max column length	Specifies the maximum length of data in a column; longer values will be cropped.	integer
Min column length	Specifies the minimum length of data in a column; shorter values will be padded with spaces.	integer
Print header	Specifies whether to print column names at the top of the file.	true/false
Show header delimiter	Adds hyphen characters either in the first row without a header or between the header and data.	true/false
Show leading delimiter	Adds a pipe character at the start of the row.	true/false
Show NULLs	Controls the display of NULL values in the output.	true/false
Show trailing delimiter	Adds a pipe character at the end of the row.	true/false

XML

Setting name	Description	Available options
File extension	Specifies the file type for output.	xml
Include DOCTYPE declaration	Specifies whether to include the DOCTYPE declaration in the XML file export.	true/false

XLSX

Setting name	Description	Available options
Append strategy	Strategy used when appending data to an existing file.	create new sheets/use existing sheets
Boolean string FALSE	String that replaces FALSE boolean values in the exported file.	true/false
Boolean string TRUE	String that replaces TRUE boolean values in the exported file.	true/false
Border style	Style of cell borders in the exported file.	NONE/THIN/THICK
Excel date format	Date and time format used in the Excel file (modifiable in Excel application).	m/d/yy / d-mmm-yy / d-mmm / mmm-yy / h:mm AM/PM / h:mm:ss AM/PM / h:mm / h:mm:ss / m/d/yy h:mm
Column group	Column number used for grouping rows on a sheet by column value.	integer
Export SQL	Specifies whether to export SQL to a second sheet in the Excel file.	true/false
File extension	File extension for the exported document.	xlsx
Header format	Format of the header in the exported file.	label/description/both/none
Header row font	Font styling for the first row in the exported file.	NONE/BOLD/ITALIC/STRIKEOUT/UNDERLINE
Max row on sheet	Maximum number of rows allowed on a single sheet, after which data will split into another sheet.	integer
NULL string	String used instead of displaying NULL values in the exported file.
Row number(s)	Includes the row index as the first column in the exported file.	true/false
Split SQL Text	Splits exported SQL into rows by CR (Carriage Return) in the exported file.	true/false
Trim strings	Removes extra leading and trailing spaces from all string values in the exported file.	true/false

HTML

Setting name	Description	Available options
File extension	File extension for the exported document.	html
Images	Extracts images to graphic files.	true/false
Output column headers	Outputs column names as an additional row in the generated table.	true/false
Output table header	Outputs the query or table name as the first row in the generated table.	true/false
