Admin Variables

Table of contents

Variables

Disclaimer: this article does NOT cover variables used in SQL editor.

What are variables

A variable is a special template which is replaced with an associated value. Variables help keep your configuration clean and tidy by avoiding unnecessary repetitions: instead of manually replacing each occurrence of some value, you can replace the value of a variable just once and its occurrences will be kept intact.

Variables are available in a lot of places. You might find them in:

  1. The Connection settings
  2. The SSH tunnel settings
  3. Data Transfer and in other tasks
  4. The Command Line Interface

Wherever you find variables available in the user interface, a hint will usually be present:

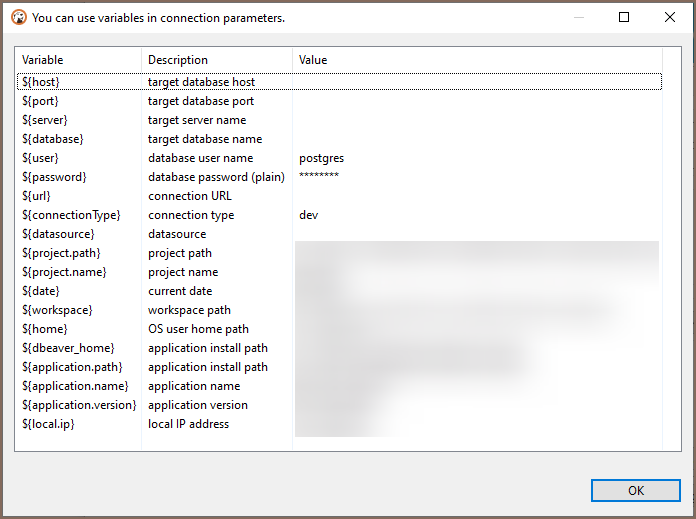

By clicking on it, a separate window will open showing all the available variables with their descriptions and values:

Using variables

To use the variables you need to utilize a special syntax:

${variable_name}

Where variable_name is a variable name which you want to use. The window shown above already contains ${ и } anchors so you do not need to specify them multiple times.

Variables may be a part of something bigger: e.g., a part of a path. For example, if some file lies under the user's root folder, you may want to use variable home: ${home}: ${home}/path/to/file.txt.

The Variable resolution

A value of a particular variable may be resolved from different places depending on its origin.

The resolution is performed in the following order (from the highest to the lowest priority):

  1. Dialog, where a specific variable is used
  2. Datasource-specific variables (host, port, server, database, etc.)
  3. Application-specific variables (application.name, application.version, home, etc.)
  4. Environment variables. For additional information see Wikipedia. If you have an environment variable called home, it will be resolved in the application-specific variable because it has higher priority.
