Microsoft Entra ID

Overview

Team Edition comes with Microsoft Entra ID (formerly Azure AD) authentication support, allowing secure access to your databases.

Info

The official Entra documentation.

Pre-requisites for connecting to Azure

  • To initiate a connection with Azure, you need to obtain your application credentials.

  • Ensure your Azure account is assigned the right roles and permissions. Properly setting up permissions on the Azure portal can help avoid potential access issues during the connection process.

    Info

    See our Azure permissions article for more details.

Application credentials

Team Edition supports the following variables:

Authentication Type Description Required credentials Additional links

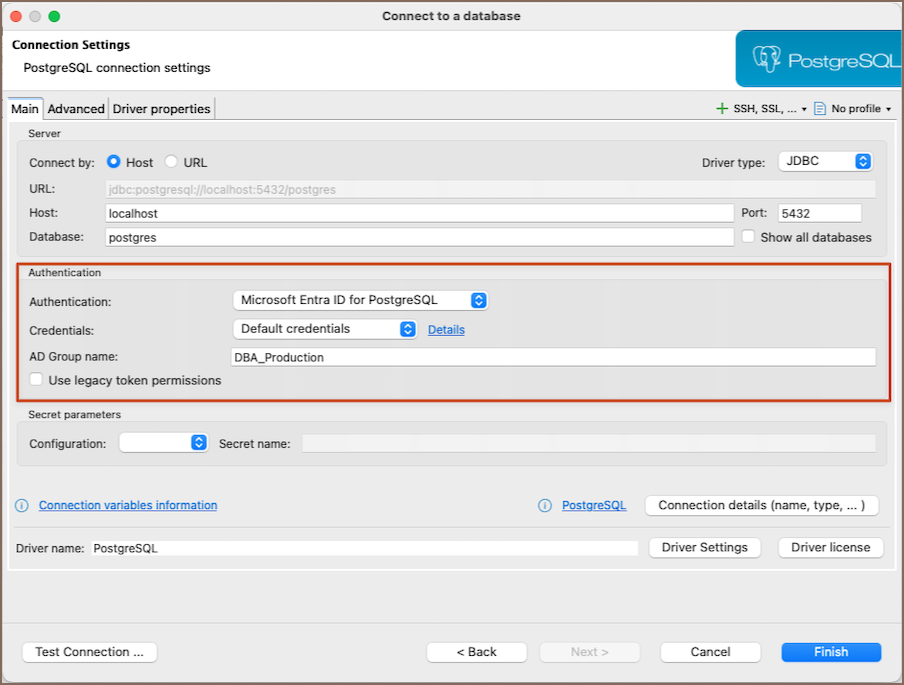

Default credentials Attempt to authenticate through several methods (env vars, CLI, managed identity). Optionally set:
- AZURE_CLIENT_ID
- AZURE_TENANT_ID
- AZURE_CLIENT_SECRET
- or certificate-related vars		 DefaultAzureCredential
Enterprise application Use credentials from your Azure Application. - AZURE_CLIENT_ID
- AZURE_TENANT_ID		 Register an app

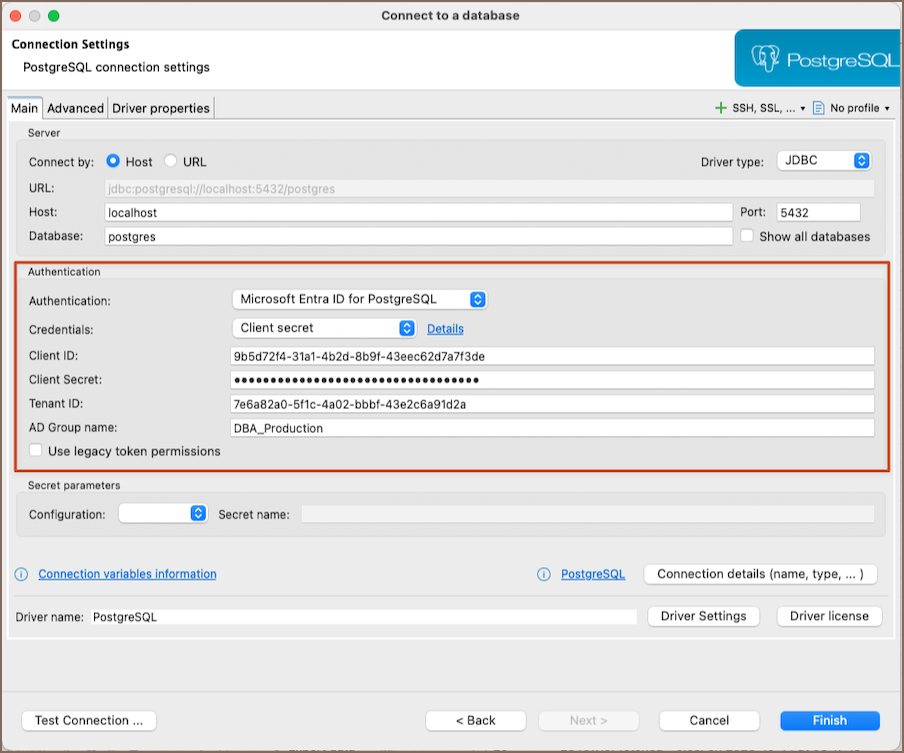

Client secret Provide specific credentials from your Azure Application. - AZURE_CLIENT_ID
- AZURE_TENANT_ID
- AZURE_CLIENT_SECRET		 Use client secret

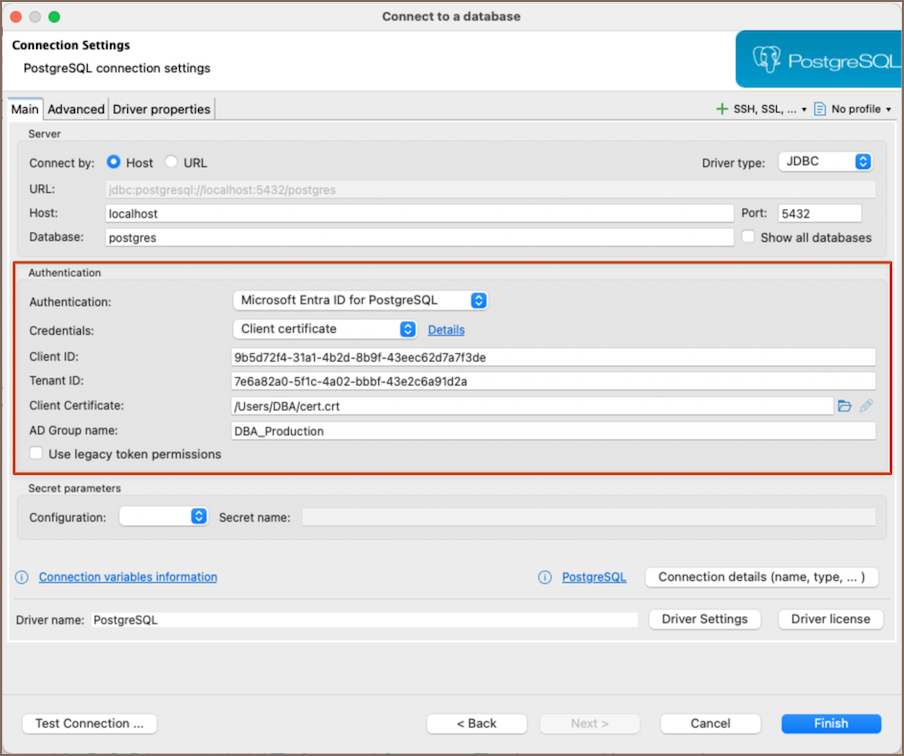

Client certificate Utilize certificate-based authentication with your Azure Application. - AZURE_CLIENT_ID
- AZURE_TENANT_ID
- AZURE_CLIENT_CERTIFICATE_PATH
- AZURE_CLIENT_CERTIFICATE_PASSWORD (optional)		 Use client certificate

Note

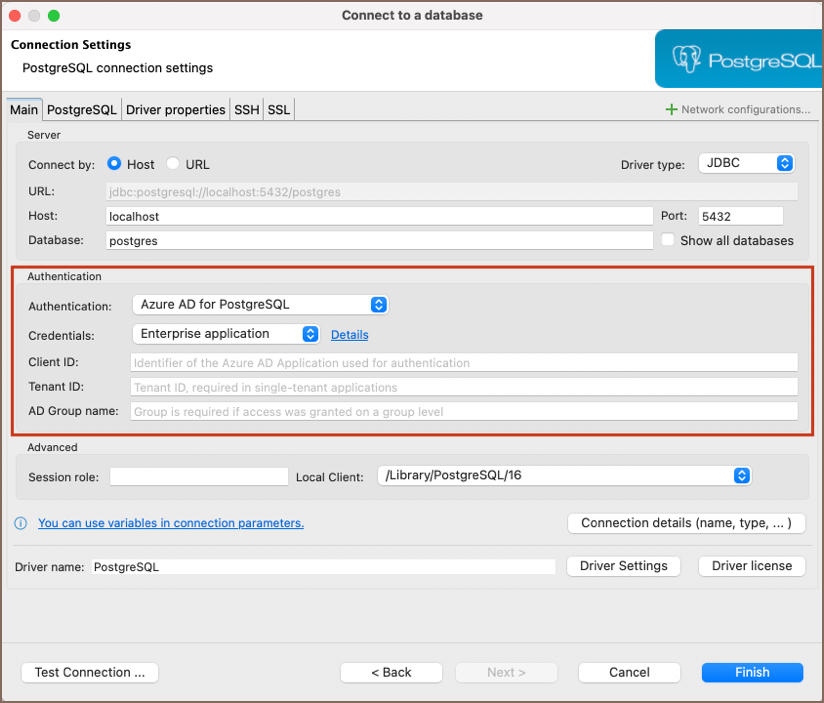

If you belong to an Azure Entra ID Group, you must add the AD Group name to your Connection configuration. To do this, right-click your database in the Database Navigator, then select Edit Connection. In the dialog that opens, go to the Connection Settings tab and enter your AD group name in the required field.

Set environment variables for authentication

To use the credentials listed above, you need to set them as environment variables in your system.

On macOS

  1. Open a terminal.
  2. Run:
    launchctl setenv AZURE_CLIENT_ID VALUE
launchctl setenv AZURE_TENANT_ID VALUE
launchctl setenv AZURE_CLIENT_SECRET VALUE
  3. Restart Team Edition.

On Linux

  1. Open a terminal.
  2. Add the following lines to your shell profile (~/.bashrc, ~/.zshrc, or similar):
    export AZURE_CLIENT_ID=VALUE
export AZURE_TENANT_ID=VALUE
export AZURE_CLIENT_SECRET=VALUE
  3. Apply the changes:
    source ~/.bashrc
  4. Restart Team Edition.

On Windows

  1. Open System Properties -> Environment Variables.
  2. Add user or system variables:
  3. AZURE_CLIENT_ID
  4. AZURE_TENANT_ID
  5. AZURE_CLIENT_SECRET
  6. Restart Team Edition.

Troubleshooting

Authentication fails

Group-based authentication fails

If you're using an Entra ID security group to connect to Azure Database for PostgreSQL and see an error like:

password authentication failed for user "<group-name>"

Check the following:
