Database navigator
Overview
Database Navigator is the main tool in Team Edition for working with database structure and data. It shows a tree of objects - like connections, schemas, tables, and views - based on your database type.
Tip
If you don’t see Database Navigator, go to Window -> Database Navigator to open it.
Navigation
Browse database objects
Use the tree in Database Navigator to view and explore databases. Each connection shows its own set of objects - schemas, tables, views, procedures, and more. Expand a connection to access its contents. Click any object to open it in the appropriate editor or viewer.

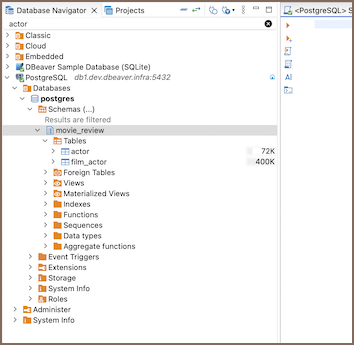

Filter database objects
Use the filter bar above the navigator tree to search and filter database objects.
Start typing to highlight matching items. The filter supports partial matches and updates results instantly.
You can also filter using the view options or context menu.
Tip
The filter applies only to expanded nodes. For details, see Filter database objects.

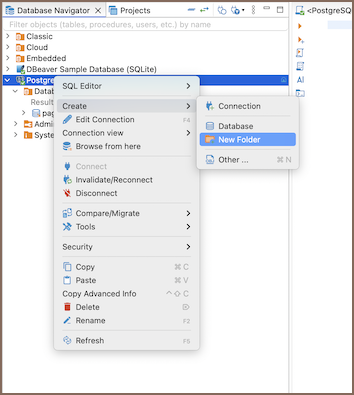

Group database objects in folders
Use folders to organize connections:
- Right-click in the tree and select Create -> New Folder to add a new folder.
- Drag and drop connections or objects into folders to group them.
Tip
You can also create subfolders within existing folders to further organize your database objects.

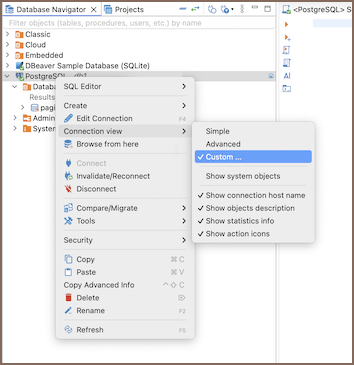

Simple and advanced view
Switch between Simple, Advanced, or Custom view to control how much detail is shown in Database Navigator.
Use this option to simplify the tree or show all available objects, depending on your needs.
Info
For details, see Simple and advanced view.

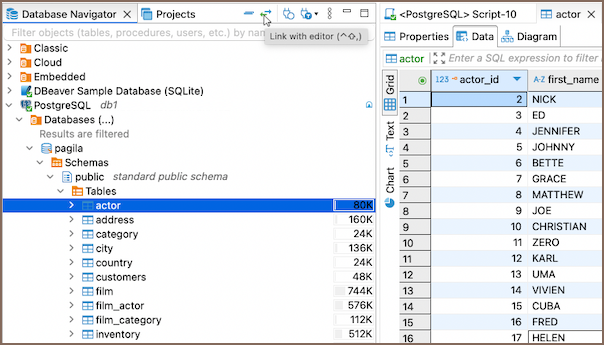

Highlight object from editor
Use Link with editor button
to highlight the object currently opened in
the SQL Editor or Data Editor in Database Navigator.
When enabled, Database Navigator selects and scrolls to the schema that contains the active object.
Toggle this option from the top toolbar of the Database Navigator.

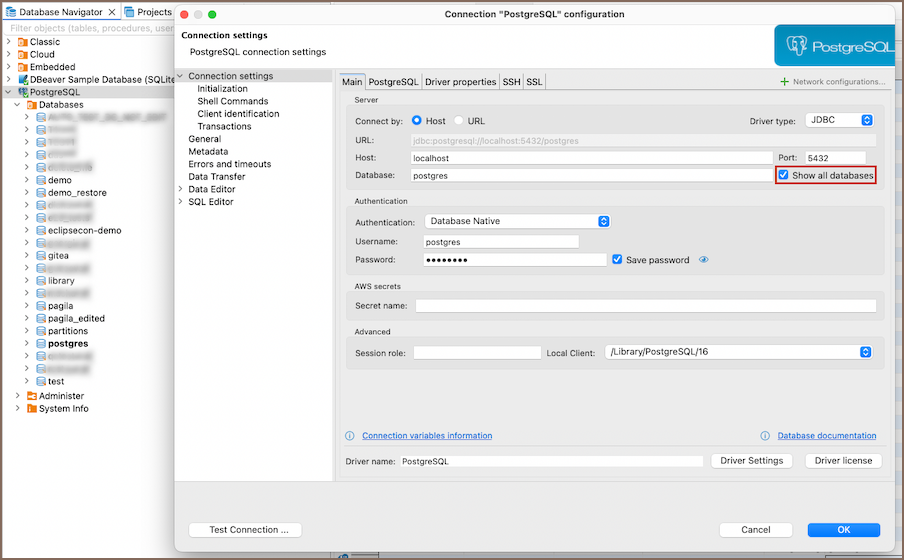

Show all databases
Enable Show all databases in the connection settings to display all databases in Database Navigator.
Some databases (such as PostgreSQL) may show only the active database or a limited set of schemas by default.
Toolbar
The toolbar contains buttons for the most basic and frequently used commands:
| Icon | Menu item | Description |
|---|---|---|
 |
Collapse All | Collapses all tree items to the root level. |
|
Link with editor | Syncs the selected item in active editor with schema in the Database Navigator. |
 |
Show all connections/Show connected only | Filters the tree to show either all connections or only connected ones. |
 |
Filter mode | Cycles through object filter levels: connections, catalogs and schemas, or individual objects. Read more |
 |
View menu | Opens additional options. Read more |
View menu
Click the View Menu button () in the upper-right corner of the Database Navigator panel to open additional options.
| Icon | Menu item | Description |
|---|---|---|
 |
New Database Connection | Opens the connection wizard. |
 |
Driver Manager | Opens the driver manager for configuring drivers. |
| Active Project | Switches between projects. | |
 |
New Folder | Creates a new folder in the current project. |
|
Collapse All | Collapses all nodes in the tree. |
|
Link with editor | Syncs the selected object with the active editor tab. |
 |
Preferences | Opens DBeaver settings. |
 |
Refresh Projects | Reloads all projects and folders. |
Tip
Use the View Menu for project-level actions and layout options - it’s different from the context menu, which changes based on the selected object.

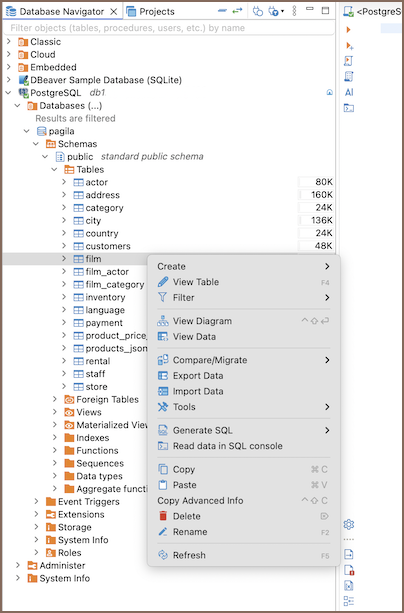

Context menu
Right-click an object in the Database Navigator tree to open its context menu. The menu shows different items depending on the database type and selected object.
| Menu item | Description |
|---|---|
| Create | Creates objects like connection, folder, and other. |
| Open folder | Opens the selected folder in a new view. |
| Copy | Copies the selected object. |
| Paste | Pastes the copied object into the selected folder or node. |
| Delete | Deletes the object. Warning: This action removes the object from the database or file system. It can't be undone. |
| Rename | Opens a dialog to rename the object. |
| Refresh | Refreshes the selected node and its children. |
| Connect | Connects to the database. |
| Invalidate/Reconnect | Reconnects if the connection is broken. |
| Disconnect | Disconnects from the database. |
| SQL Editor | Opens new script, last edited script for this connection. |
| Edit connection | Opens the connection settings. |
| Connection view | Lets you switch between Simple, Advanced, or Custom views. Read more |
View [object] |
Opens the object in a viewer. |
Edit [object] |
Opens the object in an editor. |
Create new [object] |
Starts creating a new object. |
| Filter | Opens filtering options for the selected object: - Hide [object]- Show only [object]- Configure [object] filter- Toggle filter - Clear filter Read more |
| Copy Advanced Info | Copies the object’s full name. |
| Read data in SQL console | Opens a console to preview data from the object. |
| Compare/Migrate | Opens the export wizard. |
| Generate SQL | Opens options to generate SQL statements: - SELECT- INSERT- UPDATE- DELETE- MERGE- DDL |
| Export Data | Opens the export wizard. |
| Import Data | Opens the import wizard. |
| Tools | Opens tools like Dashboards, Tasks, Backup and restore. |
Tip
The available menu items change depending on the selected object and database.
Additional capabilities
Drag and drop from Database Navigator
You can drag objects from Database Navigator into the SQL Editor to quickly add their names to a query.
Note
After you drop an object, it stays selected in the editor. If you run the query right away, only the selected part runs - which often causes an error because it's not a complete query. Click in the editor to deselect the object before running the query.
Shortcuts
You can navigate, filter, and edit objects faster with keyboard shortcuts.
Info
For a full list, see Shortcuts.
