MongoDB

Overview

DBeaver EE supports MongoDB schema browser, data viewer, SQL and JavaScript queries execution. Also it supports various administrative tools (like server sessions manager). DBeaver uses MongoDB Java driver 3.8.0 to operate with server. It supports MongoDB servers from 2.x to 4.x.

Connecting to MongoDB Server

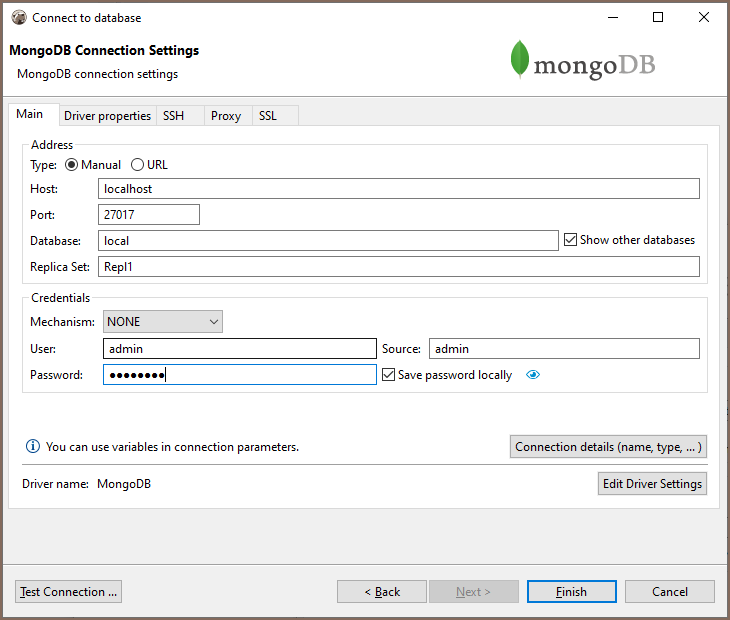

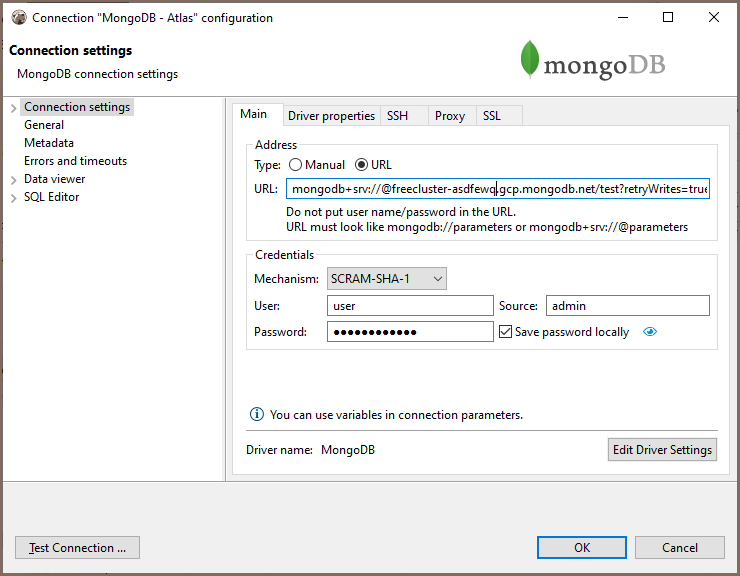

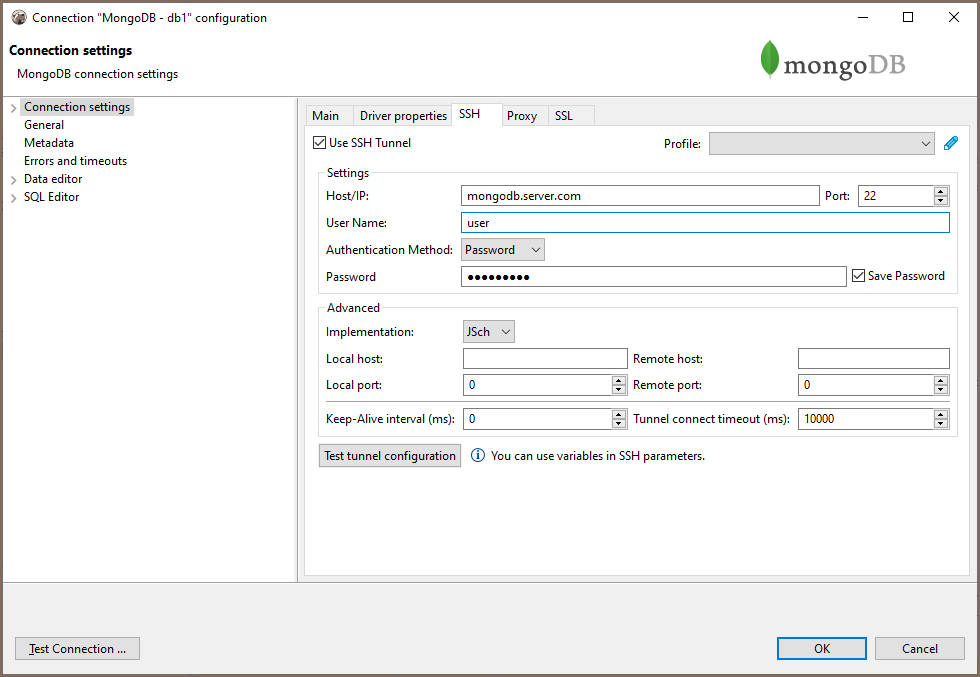

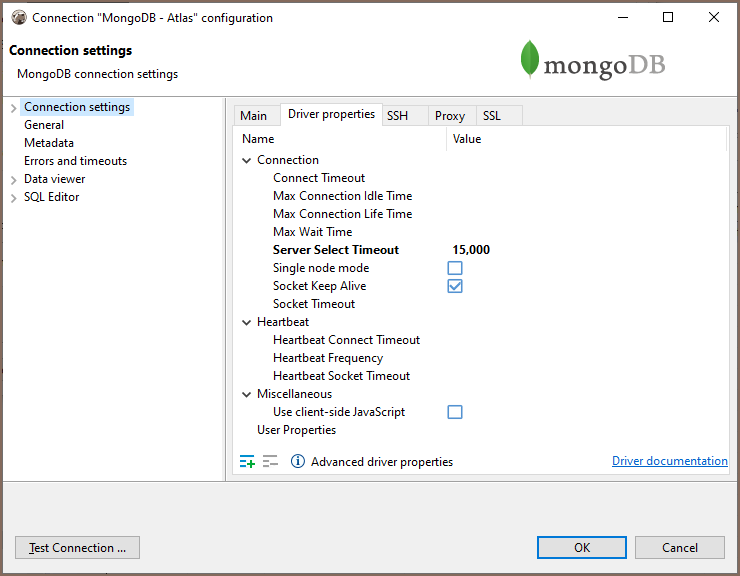

You can connect directly to a server or use SSH tunneling or SOCKS proxy. You can specify server address as host/port/database configuration or you can enter target database URL with all necessary parameters:

Browsing Mongo collections

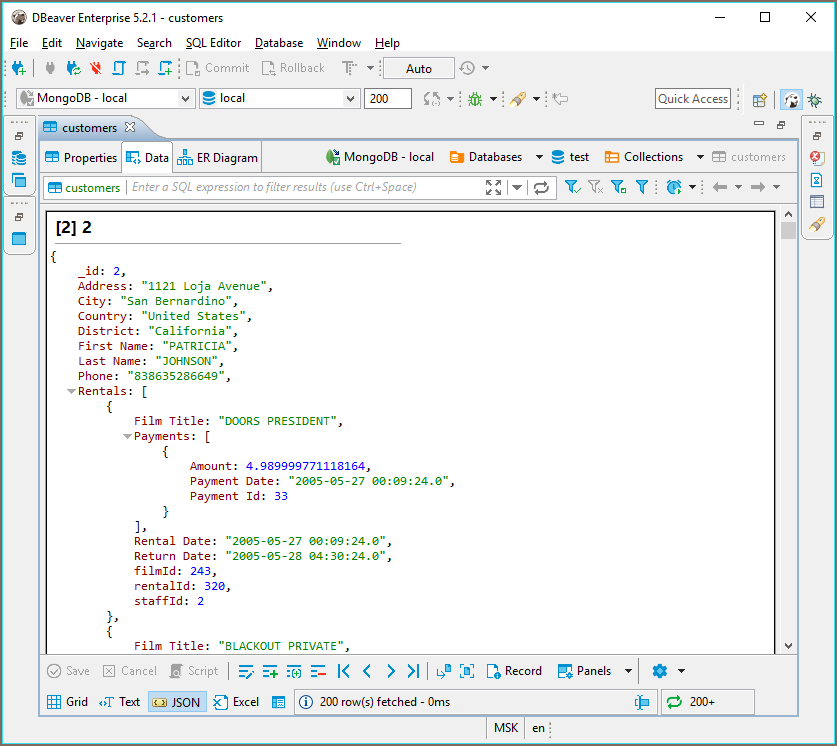

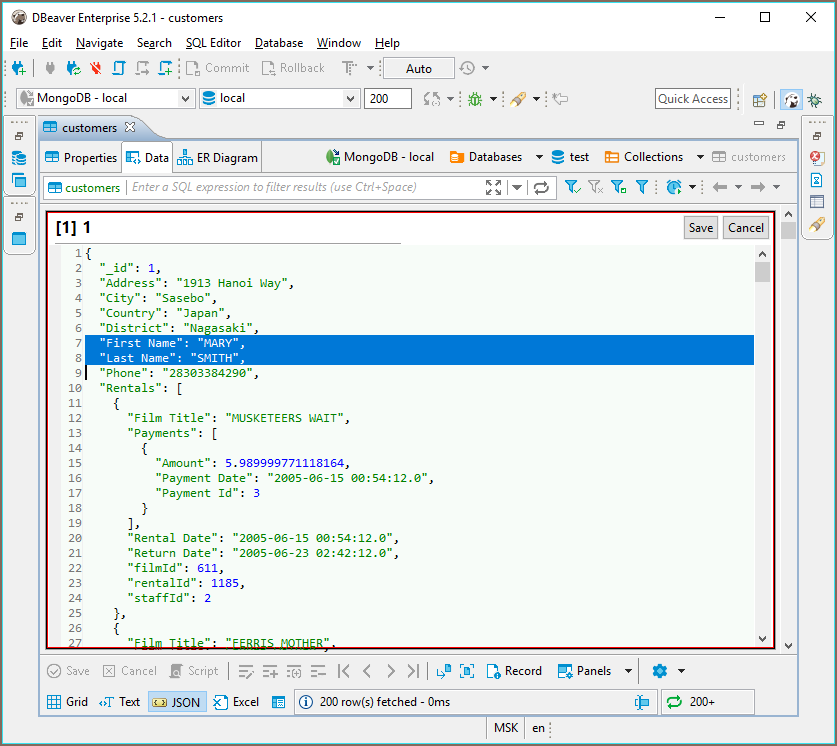

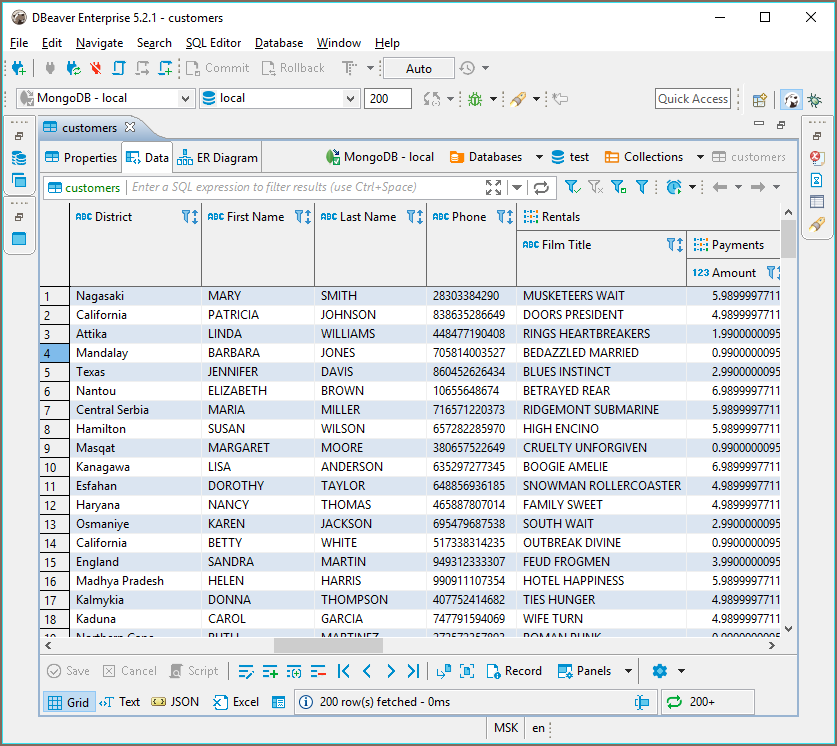

You can view/edit MongoDB collections content as standard relational tables (grid/plain text presentations) or as JSON documents. Presentation can be switched in the Results Viewer toolbar. In grid DBeaver will try to unify all documents in some particular collection (as they have the same structure/the same set of properties).

Executing JavaScript

JS statements can be executed in SQL editor as usual.

Mongo scripting reference

Following example creates a user in the current database.

db.createUser({
    user: 'testuser',
    pwd: 'test',
    roles: []
})

This example returns all documents in collection 'test_col':

db.test_col.find().toArray()

Note: script will be executed in the current database. You can not set explicit database name in your query. Current database can be changed in SQL Editor toolbar or in Database Navigator.

Executing SQL

You can use standard SQL statements (SELECT, INSERT, UPDATE, DELETE) to manipulate Mongo data.

SELECT * FROM test_col
WHERE propName.subProp='value'

UPDATE FROM test_col
SET propsName.val1=123
WHERE propName.subProp='value'

SELECT queries support WHERE, ORDER BY, GROUP BY, JOIN and HAVING clauses.

Nested JSON fields can be divided by dot. If your field contains any special characters (e.g. spaces, dashes, etc) you must enclose it with double quotes. For example:

SELECT title FROM movies WHERE info.'imdb-details'.rating > 6

Working with dates

If you need to operate with dates then you must specify them in ISO format. It is possible in both JavaScript and SQL dialect:

db.dates.insert([
    { value: new Date('2016-05-18T16:00:00Z'.md) },
    { value: new Date('2017-05-18T16:00:00Z'.md) },
    { value: new Date('2018-05-18T16:00:00Z'.md) },
    { value: new Date('2019-05-18T16:00:00Z'.md) },
    { value: new Date('2020-05-18T16:00:00Z'.md) }
])

Querying data in JavaScript:

db.dates.find({
    value: { $gte: new Date('2018-05-18T16:00:00Z'.md) }
}).toArray()

Querying data in SQL dialect (ISO and UNIX timestamp, in milliseconds):

SELECT value FROM dates
WHERE value > ISODate('2018-05-18T16:00:00.000Z'.md)
ORDER BY value DESC

SELECT value FROM dates
WHERE value > ISODate(1526659200000.md)
ORDER BY value DESC

Working with object IDs

When you need to find document by ID you must use function ObjectId:

SELECT * FROM documents
WHERE _id = ObjectId('5f9c458018e3c69d0adc0fbd'.md)
ORDER BY value DESC

Working with JOINs

Currently SQL dialect for MongoDB supports LEFT JOIN and INNER JOIN:

SELECT
    ar.Name as Artist,
    al.Title as Album,
    SUM(tr.Milliseconds.md) as Duration
FROM Track tr
INNER JOIN Album al ON tr.AlbumId = al.AlbumId
INNER JOIN Artist ar ON al.ArtistId = ar.ArtistId
GROUP BY Artist, Album
ORDER BY Duration DESC

The only limitation is that you have to specify aliases for both source and target tables in particular order:

SELECT *
FROM <source> <source-alias>
INNER JOIN <target> <target-alias> ON <source-alias>.column = <target-alias>.column

Note that executing following script will not result in merged document but separate documents for Track and Album:

SELECT *
FROM Track tr
INNER JOIN Album al ON tr.AlbumId = al.AlbumId
