ODBC JDBC Driver

Note: This feature is available in Lite, Enterprise, Ultimate and Team editions only.

ODBC allows you to create a connection to almost any database in DBeaver by using native ODBC drivers. You can use it as an alternative to DBeaver drivers or if DBeaver does not have a driver for your database.

As of now, we aim to support any ODBC drivers. However, the following database drivers have been verified for compatibility:

  • Amazon Redshift
  • BigQuery
  • DB2 for LUW
  • DB2 for IBM i
  • MariaDB
  • MySQL
  • Microsoft Access
  • Oracle
  • PostgreSQL
  • SQL Server
  • SQLite
  • Snowflake

Installing ODBC driver manager

DBeaver works with ODBC drivers using ODBC driver manager. A driver manager is a component is installed in your operating system that provides access to drivers written in native programming languages.

  • On Windows, a driver manager is already installed by default.
    You can access it by pressing WIN+R and typing odbcad32.
  • On Linux and macOS, you need to install this component separately.
    We recommend the iODBC driver manager as it's confirmed to work flawlessly with DBeaver against Linux and macOS. To install, follow the provided instructions.
    You can access it by typing iodbcadm-gtk in the terminal.

Installing ODBC drivers

  • On Windows, it's done by installing a driver using Windows Installer (.msi). The installation is the same as for any other software.
  • On Linux and macOS, a driver can be either installed from a package manager or by building it manually.
    Once a driver is installed, you need to add it to the driver manager. Open the driver manager, go to ODBC Drivers tab, press Add a driver and select required files.

Configuring ODBC data sources

Note: The process is mostly the same for all operating systems.

  1. Open the driver manager
  2. Go to User DSN or System DSN tab
    1. Choose User DSN if you want to create a data source accessible only by the current user
    2. Choose System DSN if you want to create a data source accessible by all users
  3. Click Add and choose the appropriate driver
  4. Configure data source settings and click OK

Creating ODBC connections in DBeaver

Open the New Database Connection dialog and select ODBC (Not ODBC - Legacy).

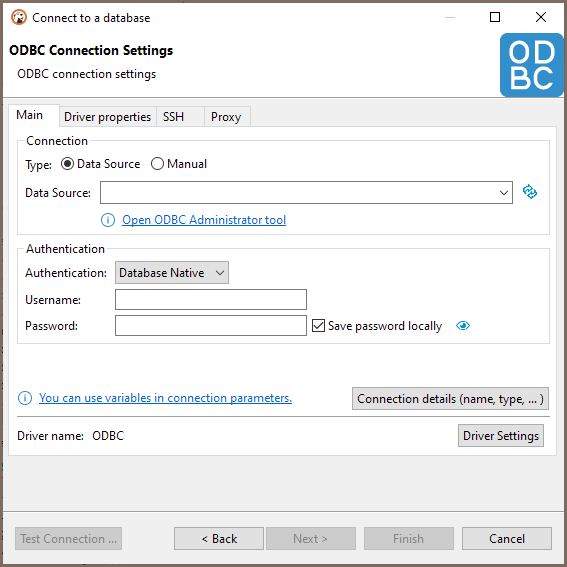

If you want to use a configured ODBC data source, switch to Data Source connection type and choose it from a drop-down menu:

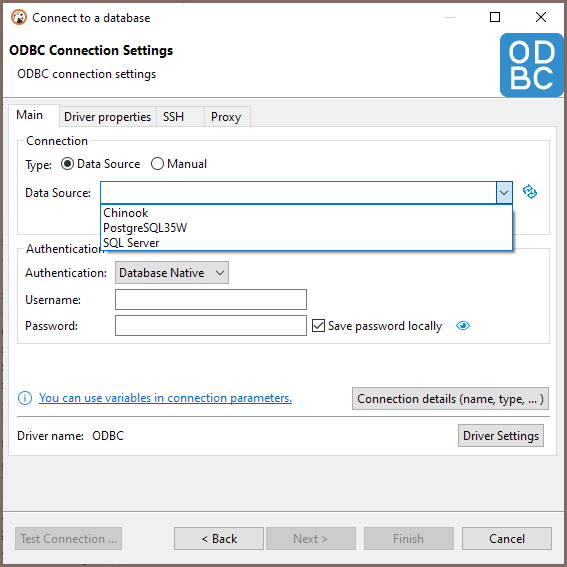

Data SourceData Source (drop-down)

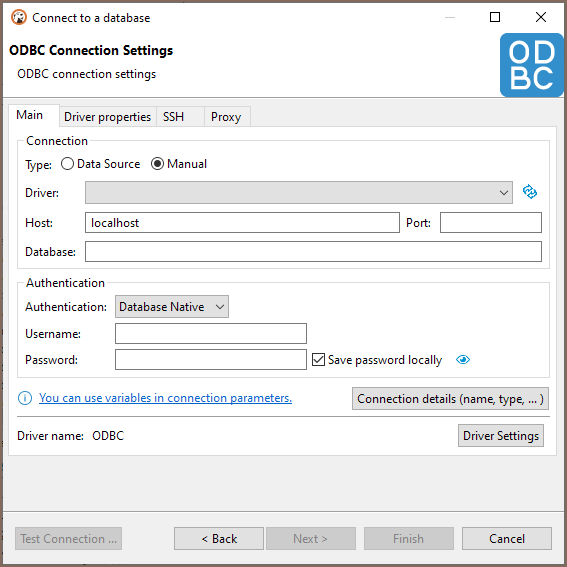

If you want to use an ODBC driver directly and manually configure connection parameters, switch to Manual connection type and choose an appropriate driver from a drop-down menu and fill rest of the fields according to your configuration:

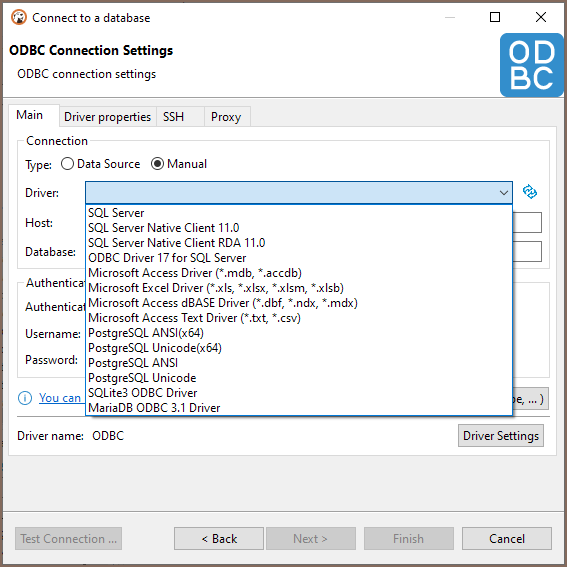

ManualManual (drop-down)

Making existing DBeaver connections use ODBC driver

DBeaver allows you to replace the underlying database driver of a connection with our ODBC driver. This is not the same as creating a new ODBC connection as it keeps all database-specific functionality untouched.

Note: In this mode, you can't use database-specific authentication methods and settings.

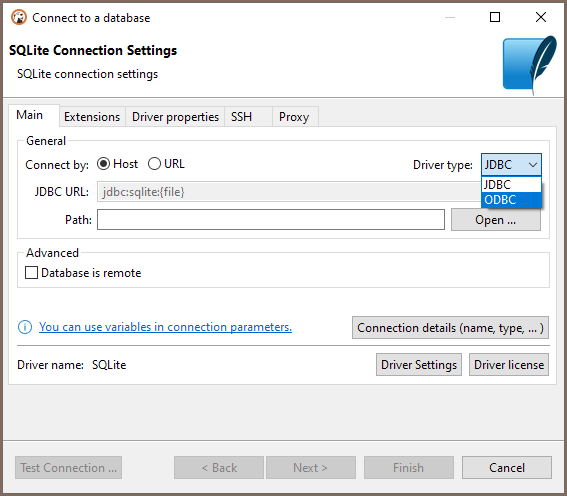

To do so, open existing connection and choose ODBC as the driver type from the drop-down menu:
