New Table creation

Set focus to "Tables" in the Database Navigator, select 'Create New Table'.

* A new table is created with the default name "newtable". Go to the 'Properties' tab to rename it * As soon as you set the Table Name (1.md), move to the 'Columns' tab (2.md) * Right click on the Column screen, select 'Create New Column'

BTW: Another way to add a new column is to expand the table view in the Navigation pane (1.md) and 'Create New Column' from the context menu (2.md)

* A new column is created with a default column name and Data Type. Adjust the column properties as you wish.

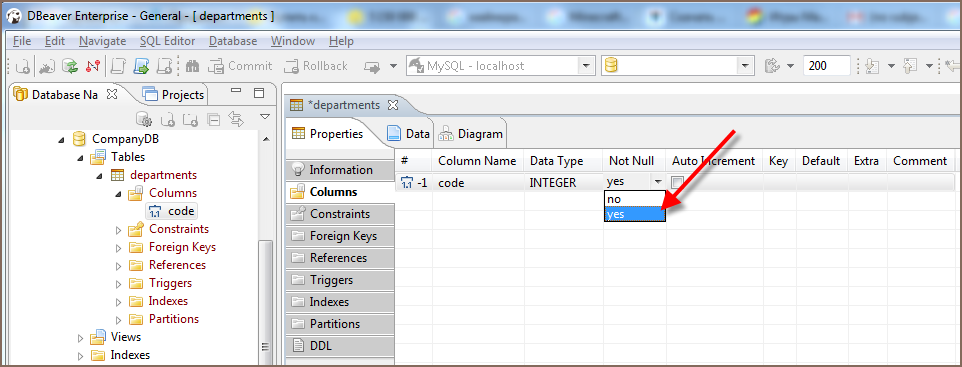

BTW: To tick the checkbox (e.g. "Not Null") click the field and select "yes" from the dropdown list

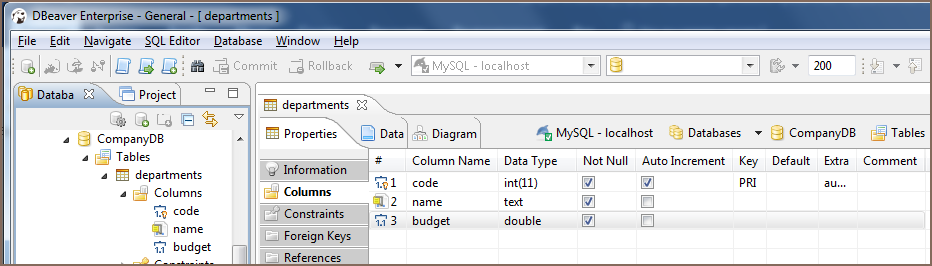

Add more columns

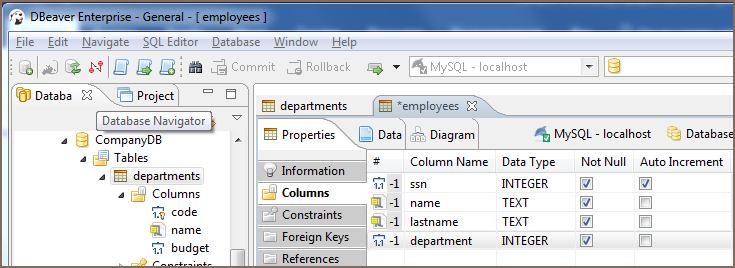

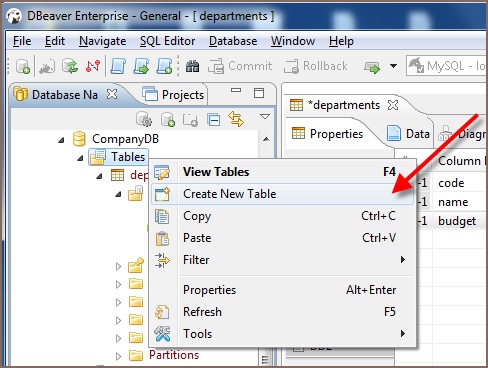

Create a second table: right click menu on 'Tables' in Navigator -> Create New Table ,

Primary Key creation

Move to the 'Constraints' tab of the corresponding table, right click on the screen -> 'Create New Constraint'
Select the column (1.md)and save (2.md) ,
Save the tables: select the table in Navigation pane (1.md) an press 'Ctrl+S' (or Top menu -> File -> Save, 'Persist' the changes (2.md).

,

Foreign Key creation

Go to 'employees' table, 'Foreign Keys' tab. Right click on the screen -> Create New Foreign Key ,
