Oracle authentication

Configure an Oracle connection with Basic, Transparent Network Substrate (TNS), or Custom settings. Then choose the authentication method required by your environment.

Oracle connection types¶

Use this section to configure how Team Edition connects to Oracle. Follow the procedure for your connection method.

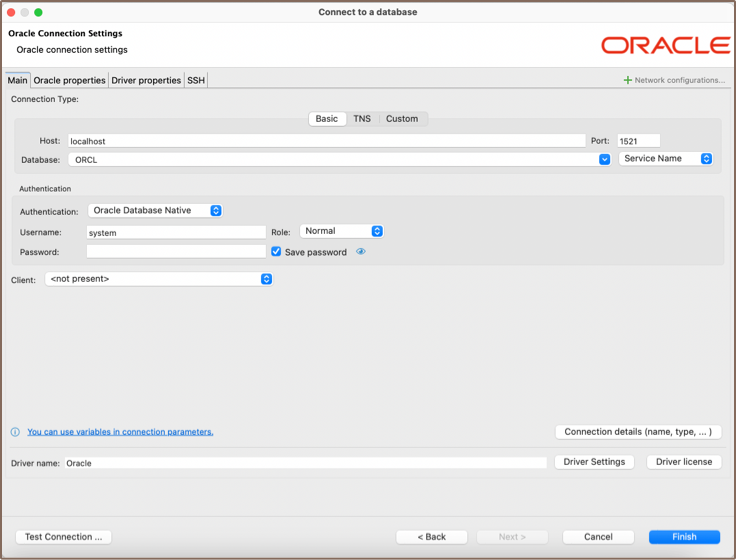

Basic connection type¶

Use Basic to connect directly to an Oracle host.

Select Basic in the connection settings.
Enter Host, Port, and Database, then select Service/SID.

Parameter	Description	Example
Host	Server host name	`192.168.1.25`
Port	Server listener port	`1521`
Database	Service or system identifier (SID) name	`ORCL`
Service/SID	Database identifier type required by the server	`SID`
Authentication	Authentication method for the connection; see Choose an authentication method

For a service, Team Edition uses jdbc:oracle:thin:@//host:port/service. For a SID, it uses jdbc:oracle:thin:@host:port:SID.

TNS connection type¶

Use TNS when you have a tnsnames.ora file that defines Oracle network aliases.

Select TNS in the connection settings.
Configure the TNS settings.

Parameter	Description
TNS names path	Path to `tnsnames.ora`; Team Edition loads the available aliases from this file
Network Alias	Alias that identifies the database connection
Authentication	Authentication method for the connection; see Choose an authentication method

Team Edition can detect the default tnsnames.ora location. You can also specify the path manually.

Custom connection type¶

Use Custom when you need to provide the complete Java Database Connectivity (JDBC) URL.

Select Custom in the connection settings.
Configure the Custom settings.

Parameter	Description
JDBC URL Template	Complete JDBC URL for the connection
Authentication	Authentication method for the connection; see Choose an authentication method

Connect to Oracle Autonomous Database with a Custom URL¶

Use this workflow to connect to Oracle Autonomous AI Database Serverless with JDBC Thin TLS without a wallet.

Configure network access for the database endpoint. You can allow secure access from everywhere, use access control rules for IP addresses or CIDR blocks, configure VCN rules, or use a private endpoint. For information on access control rules, see Configure access control lists.
In the Oracle Cloud console, open Database connection -> TLS Authentication -> TLS, and copy the connection string.
In Team Edition, select Custom, and enter the complete connection string in JDBC URL Template.

For information on this connection method, see Connect JDBC Thin with TLS authentication without a wallet. For an overview of JDBC Thin connection options, see Connect with JDBC Thin.

Example

Oracle Cloud URL:

jdbc:oracle:thin:@(description=(retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=xxxxxxxxxxxxxxxxx_high.adb.us-ashburn-1.oraclecloud.com))(security=(ssl_server_cert_dn="CN=adwc.uscom-east-1.oraclecloud.com, OU=Oracle BMCS US, O=Oracle Corporation, L=Redwood City, ST=California, C=US")))

Choose an authentication method¶

Username/password¶

Enter the Oracle database credentials and role.

Parameter	Description	Example
User name	Database user name	`SYS`
Password	Database user password
Role	Connection role, such as Normal, SYSDBA, or SYSOPER	`Normal`
Save password	Saves the credentials in the local Team Edition configuration

OS authentication¶

Configure Oracle and Oracle Client before selecting OS authentication in Team Edition.

Create or map the OS account to an externally identified Oracle database user. Oracle prepends the OS_AUTHENT_PREFIX value to the OS username during mapping. For information on configuring users and name mapping, see Operating System Authentication of Users.
Install and configure Oracle Client for the passwordless external authentication path through the OCI driver. For information on Oracle JDBC requirements, see JDBC Client-Side Security Features.
Configure the JDBC OCI driver in Team Edition.

Note
Remote OS authentication over TCP is disabled by default and requires Oracle-side configuration by an administrator.
Select OS authentication and leave the username and password empty. Team Edition uses the current OS user.

Kerberos¶

For information on Kerberos authentication, see Kerberos authentication.

Microsoft Entra ID¶

For information on direct Microsoft Entra ID authentication, see Authentication with Microsoft Entra ID.

Oracle Wallet¶

Oracle Wallet stores security keys and can also contain database credentials or TNS configuration.

Extract the wallet archive to a local folder.
Select Oracle Wallet as the authentication method.
Enter the folder in Wallet location.
Enter Wallet password if the wallet is password-protected.
Enter the database user name, password, and role if the wallet doesn't contain database credentials.

Connect to Oracle Autonomous Database with a wallet¶

Use this mutual TLS workflow to connect to Oracle Autonomous AI Database Serverless. TNS reads the connection alias from the wallet's tnsnames.ora file, while Wallet location supplies the wallet files.

Download the wallet from Oracle Cloud.
Extract the archive to a local folder.
Select TNS as the connection type.
Set TNS names path to the tnsnames.ora file in the extracted wallet folder.
Select the required Network Alias.
Select Oracle Wallet as the authentication method, as described in the parent section, and enter the database user name and password.
Set Wallet location to the extracted wallet folder.
